This guide shows how to adjust the proper sensitivity and threshold in Dahua NVRs or Dahua (branded or OEMs). Sometimes the issues related to the motion detection not being triggered at all, or being triggered “too slow” are solved by adjusting these sensitivity /threshold settings.
Additionally, if you have enabled and configured snapshots settings and they are not recording, you still need to double check these settings. Adjusting the threshold or sensitivity settings can cause a smaller or larger sized object to trigger a motion detection event. This article about sensitivity/threshold is more extended.
Threshold and Sensitivity in Dahua NVR/DVR or IP camera
The following instructions require you to access your system using your DVR / NVR and a monitor. To adjust threshold or sensitivity:
Step 1. Right-click on the Live View to access the Quick Menu toolbar. Click Main Menu and then click the Setting icon.
Step 2. Click Event > Motion then go the Motion Detect tab. Click Channel and select the camera to be configured.

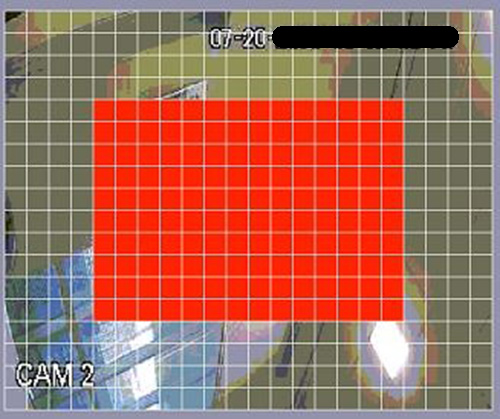

Step 3. Click Setup to configure the areas of the image that will be enabled for motion detection. Use the grid on the monitor to enable the area where motion detection is required.
Recommendation: Remove the motion detect region from the outer border of the screen. This way motion detection is not triggered until after the person / object enters the frame.
-
- Configure the sensitivity and threshold of each zone by clicking the zone’s color at the top of the screen.
- Right-click when finished.
You should now be receiving motion detection alert snapshots.
Areas enabled for motion detection are shown in color and areas that are disabled are transparent. Hover the mouse at the top of the screen to select which motion area you would like to configure. You can set up to 4 motion detection areas and customize the sensitivity and threshold for motion detection separately for each area between 0 (lowest) and 100 (highest).
- Sensitivity determines how sensitive the camera is to motion. For example, if the sensitivity is high, small amounts of motion are more likely to trigger an event. It is recommended to select a Sensitivity between 30~70.
- Threshold determines how much motion is required to trigger an event. If the amount of motion exceeds the threshold, an event occurs. It is recommended to select a Threshold between 10~50.
Note: this guide works for Dahua and their OEMs sold under these brands: Activecam, Advidia, Amcrest, Ameta, Ascendent, Backstreet Surveillance, BV Security, CCTV Security Pros, CCTV Star, CP Plus (Orange Line), Dax Networks, eLine, ENS (formerly Eastern CCTV and SavvyTech), Expose, Lorex, GSS, Honeywell, IC Realtime, Ikegami, Impath Networks, Inaxsys, IndigoVision, Infinity CCTV, Innekt, Intelbras, KBVision, Lumixen, Maxron, Montavue, Oco, Optiview, Rhodium, RVI, Saxco, Security Camera King (Elite), Space Technology, Speco, ToughDog, Tyco Holis, Tyco Illustra Essentials, Unisight, VIP Vision, Watchnet, Winic, Zuum.
