Hikvision Live View Icons explained

July 19, 2022
in Hikvision

What’s the bell or alarm icon in the Hikvision live view? What does the slate board (recording) icon mean? All these are Live View icons and controls that show on a Hikvision NVR or DVR and in this guide, we will explain what they mean.

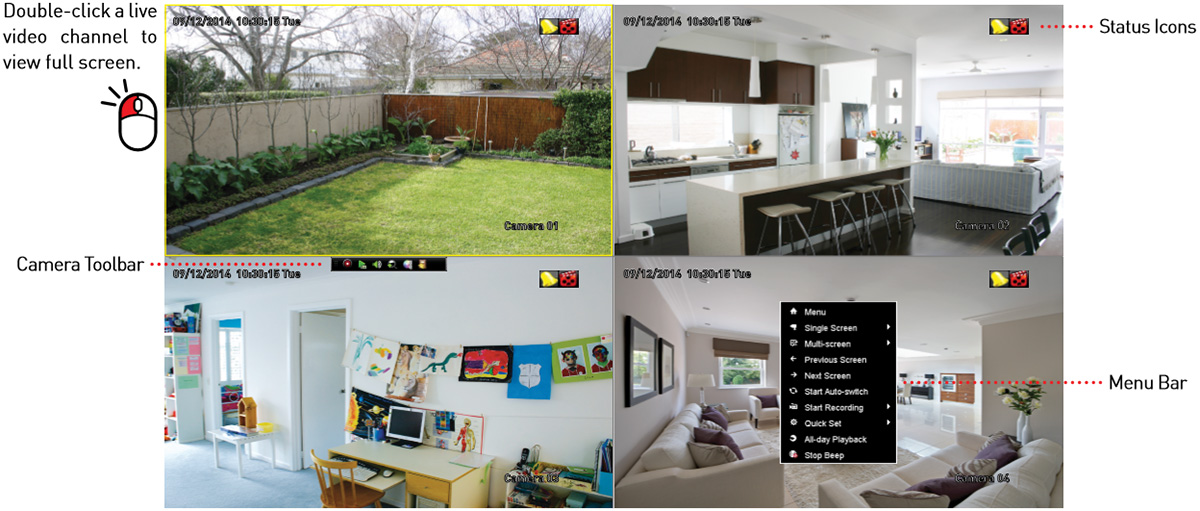

Live View is the default display mode for the DVR. Each camera connected will be displayed on-screen. You can check the status or operation of your DVR and cameras by right-clicking the mouse to access the Menu Bar.
Hikvision Live View Icons explained

Hikvision Live View icons and controls explained

Status Icons

Hikvision Live View Icons explained The recording icon indicates that the camera is currently recording (either manually or via motion detection).
Hikvision Live View Icons explained The alarm icon indicates that an event such as motion, video loss, or tampering has occurred.
Hikvision Live View Icons explainedThis icon will appear onscreen when there is an error or notification. Click the icon to view the message.
The channel has lost the video feed from the camera.

Camera toolbar

Clicking a live video channel reveals the Camera Toolbar which provides quick access to instant playback, audio monitoring, digital zoom, and the ability to change image settings such as brightness, contrast, and saturation.

Menu Bar

Hikvision Live View Icons explained

Menu: Click this to access the Menu.

Single Screen: Click this to display a full-screen video channel.

Multi-screen: Click this to select one of the multi-screen viewing modes available.

Previous Screen: Click this to display the previous channel(s).

Next Screen: Click this to display the next channel(s).

Start Auto-switch: Click this to automatically switch between channels at specific intervals (known as “Dwell Time”).

Start Recording: Click this to select either continuous record mode or motion detection record mode.

Quick Set: Click this to change the display contrast level. Please note, this doesn’t change the contrast level of the camera(s).

All Day Playback: Click this to play back video that has been recorded on the same day.

Stop Beep: Click this to disable the internal buzzer when events or errors occur. Click “Yes” or “No” to confirm.

Other options may be displayed on certain NVR/DVR models such as:

Add IP Camera: Adds a new IP camera to the recorder.

PTZ Control: Let the user control the PTZ cameras (Pan, Tilt, Zoom).

Output Mode: Selects the Output Mode.
