Zmodo won’t connect to WiFi (quick fix)

Marco Albertini by Marco Albertini
in Zmodo

If your Zmodo camera won’t connect to WiFi, then follow this guide to fix the issue quickly. You need to fix this problem as soon as possible because the Zmodo camera needs WiFi to get the live stream, motion detection, and other phone alerts.

To fix a Zmodo camera not connecting to WiFi, you should make sure the WiFi connection works and meets all the requirements. Most of the time, the issue is related to the frequency that the camera is using, more specifically the router’s WiFi may be operating at 2.4Ghz and 5Ghz and the camera is trying to connect to the wrong SSID.

In other words, the camera is operating on 2.4Ghz frequency but it’s connecting to the 5Ghz SSID (which is the wireless name). Follow the troubleshooting tips below to fix the issue.

Zmodo won’t connect to WiFi (quick fix)

Zmodo camera can’t connect to the internet (WiFi)

In 90% of the cases, this problem with the Zmodo camera happens if you are using a dual-band router. That means the router offers two WiFi signals, 2.4Ghz, and 5Ghz. Your camera may only be able to connect to 2.4Ghz and not 5Ghz (or vice versa), so it can get stuck attempting to connect to both frequencies of your dual-band router.

To fix the issue of the Zmodo camera not connecting to the internet just rename the separate SSDI’s (WiFi name) so you can differentiate between them. Follow the steps.

  • Access your router settings (usually by typing the IP address of the router on the web browser and log in with your username/password).
  • Locate the WiFi menu.
  • If your router is dual-band, you should see two WiFi names there (one is 2.4Ghz, the other one is 5Ghz). Rename each of the SSID using different names. For example, rename the first one “MyWiFi2.4” and the other one “MyWiFi5”.
  • Save the settings. Additionally, make sure your router is using the WPA or WPA2 for the encryption mode.

Zmodo won’t connect to WiFi (quick fix)Let’s assume that you have a Zmodo camera that works on 2.4Ghz only. Since we renamed both WiFi names of the router, you can connect the camera straight to the 2.4Ghz signal which above we renamed as “MyWiFi2.4”. Connect to it and the camera will start to work, no more failed connection.

Zmodo camera doesn’t take the WiFi password

Here’s an issue with some of the Zmodo cameras: they don’t accept WiFi passwords that are more than 13 characters long. Let’s say your WiFi password contains 20 characters, if you enter it on the Zmodo camera app, it won’t connect.

It’s a weird issue but it happens. The newer Zmodo models have this problem fixed, but not some of their camera models. There’s no fix for this, all you have to do is to change the password of your WiFi and use one that contains less than 13 characters.

Troubleshoot the WiFi setup (of Zmodo cameras)

Check if the WiFi signal is working in the first place. Maybe the camera can’t connect because the WiFi doesn’t work at all. Try to connect to the WiFi using your phone, or a computer, or any other device just to ensure that the internet works.

If it seems that the other devices connect fine to the internet, then reboot the router and try again. Sometimes rebooting a device can do wonders.

Next check the WiFi strength, the signal must be strong to cover your Zmodo camera. At the same time, make sure the camera is not far away from the router and that it’s within the nominal coverage. You can bring the camera closer just to see if it connects.

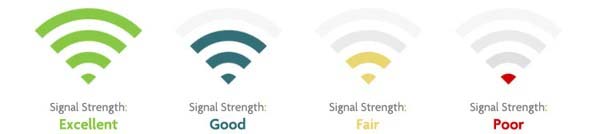

A few tips on how to check the WiFi signal strength:

  • Check the WiFi symbol on your phone or tablet, it’s displayed on the corner of the screen, and make sure all the bars are filled. The more bars, the stronger the internet.
  • Download apps as NetSpot, WiFi Analyzer, or Wireshark to test out the WiFi signal’s strength.

For some smartphones, you will need to disable your 3G/4G LTE data connection during setup. Once you have configured your device, you can re-enable your 3G/4G LTE data connection.

If the Status Light is blinking green on the camera, try removing special characters and spaces from the SSID (WiFi network name) like “?” or “!”. Also, make sure the app and the camera are updated to the latest firmware versions.

If the WiFi is okay but you’re still having issues, follow the steps below to troubleshoot your router for the SmartLink setup.

  • Access your wireless router settings.
  • Find the tab or settings for the Wireless.
  • Find the option called Wireless Network Mode.
  • Set the wireless network mode of your 2.4GHz wireless network to 802.11b only, 802.11g only, or 802.11b/g only.
  • Retry the SmartLink setup (or any Zmodo phone app that you’re using) from your smartphone while connecting to this network.
  • After the phone app successfully connects your wireless device to the WiFi network, you can change your settings back to their original value. The wireless device will automatically connect to your network.

Conclusion

Zmodo camera not connecting to the WiFi is most of the time related to dual-band routers and you need to rename the WiFi names for 2.4Ghz and 5Ghz. That way the camera will differentiate both signals and correct them to the right one. Leave a comment if you can’t solve the problem, or contact the manufacturer.
